Custom Hydraulic Stem for a Hino Dump Truck

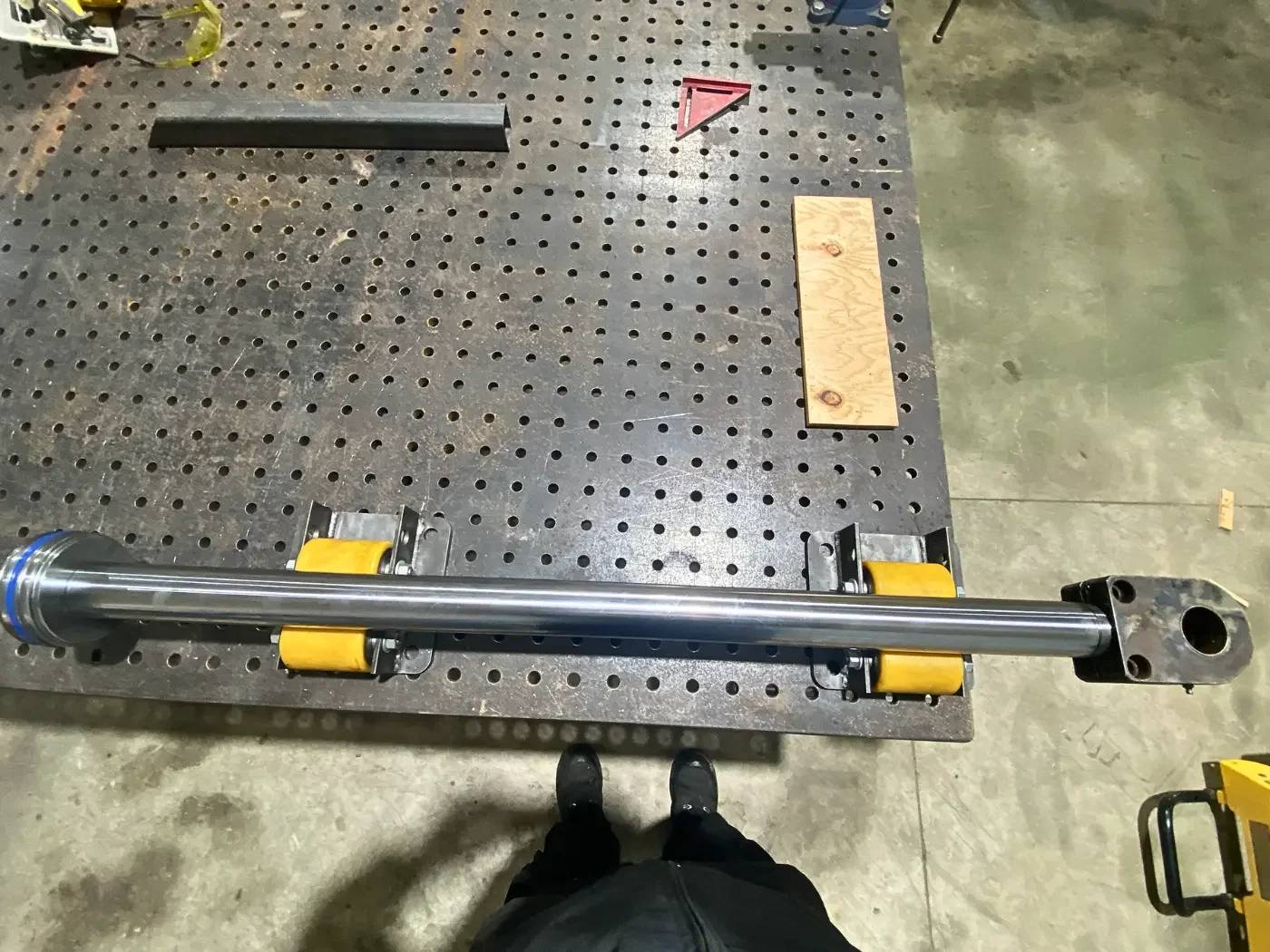

This hydraulic stem was machined from 4140 hardened chrome rod as part of a hydraulic cylinder repair for a Hino dump truck. Both ends of the rod were machined to suit the existing cylinder and mounting arrangement.
Unlike many hydraulic components that remain protected within the cylinder, the stem spends part of its working life exposed to the outside environment. Every time the cylinder extends, the rod is subjected to dirt, moisture, road salt, stone chips, and whatever other conditions the truck happens to be working in that day.
For that reason, this hydraulic stem isn't just responsible for transferring force- it also has to be able to withstand exposure to the elements while continuing to provide a surface cylinder seals can operate against.
The Hydraulic Stem Does More Than Move the Dump Body
When hydraulic pressure is applied inside the cylinder, the stem transfers that force to raise and lower the dump body. The movement itself appears straightforward, but the rod is subjected to repeated loading every time the cylinder extends or retracts. At the same time, it needs to remain straight, provide a consistent sealing surface, and continue moving smoothly through the gland as the truck operates.
Throughout its service life, the rod experiences the following while operating outside the protection of the cylinder:
compressive loads
tensile loads
repeated cycling
vibration
Most Hydraulic Rod Damage Doesn't Happen Overnight
A hydraulic stem rarely goes from perfect to unusable after a single day of work. Damage usually develops gradually as the equipment continues operating, with scoring or chips surface damage from contamination and stone chips or corrosion from environmental factors. Wear at points where the rod connects to the equipment may also form.
Over time, these minor issues can start to affect the surrounding components that depend on the rod for proper alignment and sealing.
Chrome plating isn't there just for looks- it serves a critical role in an assembly’s sealing system.
Every time the cylinder extends or retracts, the rod passes through seals designed to retain hydraulic pressure while keeping contaminants out of the cylinder. That sealing system relies on a rod surface that's smooth and consistent. If the chrome becomes damaged through corrosion, impact, or excessive wear, the effects may eventually show up as leaking seals, contamination inside the cylinder, or additional wear elsewhere in the assembly. That’s why plating the rod surface with chrome is an effective way to help protect the components that rely on it.
The Chrome Surface Works Every Time the Cylinder Cycles
Working from the Cylinder Instead of the Catalogue
It's easy to spot a severely bent hydraulic rod, but it’s a lot harder to recognize the effects of one that's only slightly out of alignment.
Even relatively small changes in straightness can influence how the rod travels through the gland and how loads are distributed throughout the cylinder, which is why a skilled machinist would evaluate more than just whether a hydraulic stem still fits the cylinder.
Depending on the application, slight misalignments may contribute to:
uneven seal wear
additional friction
side loading
reduced operating efficiency
accelerated wear of other components
Why 4140 Hardened Chrome Rod Was Used
This hydraulic stem was machined from 4140 hardened chrome rod because the application called for a material capable of handling demanding service conditions. The hardened core provides the strength required for repeated loading, while the chrome-plated surface helps resist corrosion and provides an appropriate running surface for the cylinder seals.
As with every custom-machined component, the material should reflect how the finished part will actually be used. A dump truck operating daily in changing weather and demanding job sites places different demands on a hydraulic rod than equipment used in lighter service.
Frequently Asked Questions
-
Often, yes. If the barrel, gland, piston, and other major cylinder components remain in good condition, manufacturing a replacement stem can often restore the cylinder without replacing the complete assembly. The best approach depends on the condition of the cylinder as a whole.
-
Not always, but it shouldn't be ignored either. Minor cosmetic marks may have little effect, whereas scoring, corrosion, pitting, or damage within the area where the seals travel can shorten seal life and eventually lead to hydraulic leaks. Inspecting the rod helps determine whether repair or replacement is the better option.
-
The answer to this question depends on the amount of damage and the application. While some rods may be repairable, others have experienced enough deformation or surface damage that manufacturing a replacement becomes the more reliable long-term solution. The condition of the rod should always be evaluated before deciding how to proceed.
-
In many cases, yes. Existing components can often be measured and inspected so a replacement stem can be manufactured to suit the cylinder and its mounting arrangement. This can be particularly useful for older equipment where replacement parts have become difficult to source.
