Custom 4140 Hydraulic Gland

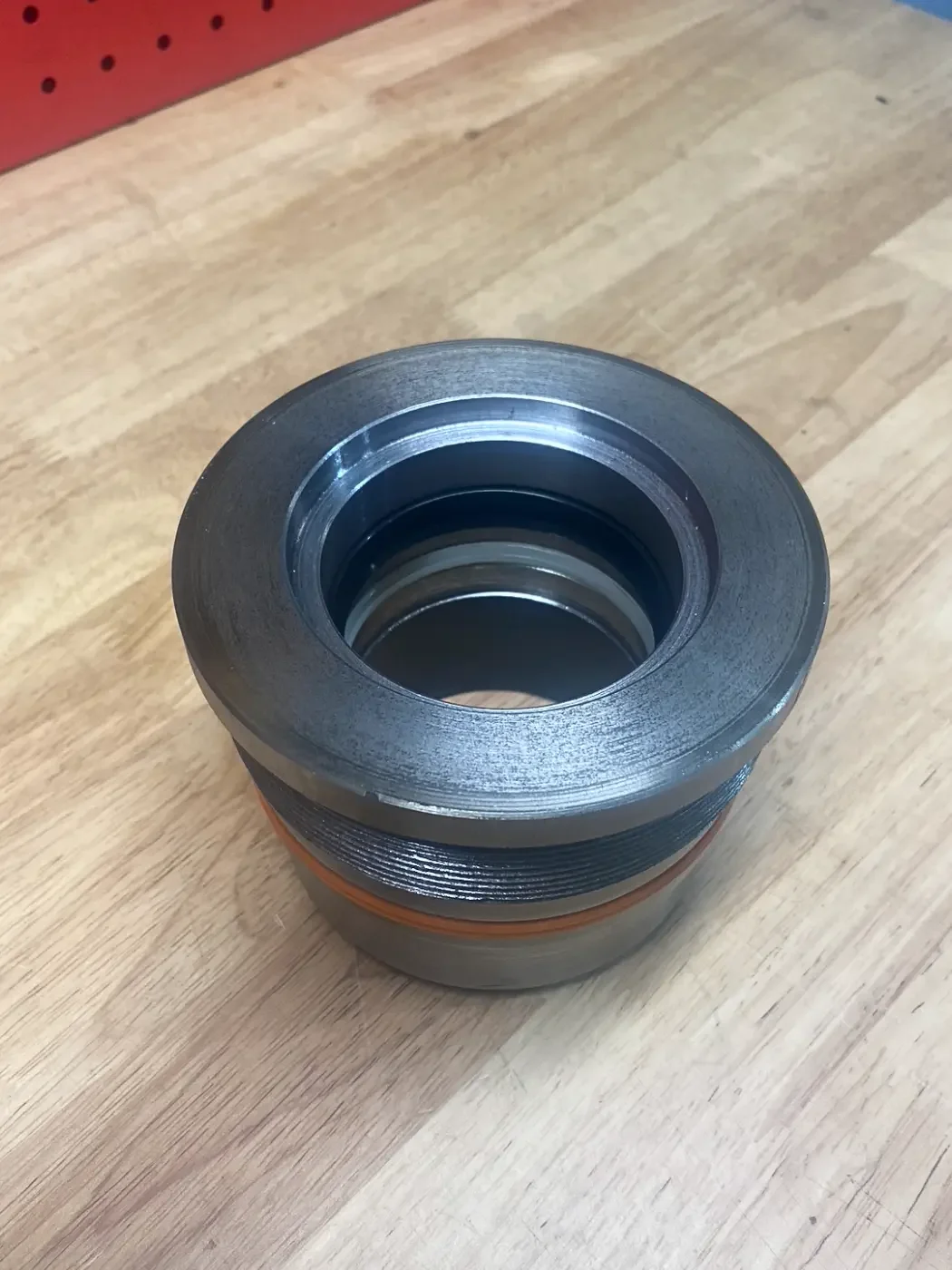

This hydraulic gland was machined from 4140 steel for a hydraulic cylinder using a 2.5-inch rod and a 4-inch bore.
Hydraulic components work together as a system, so a gland that's even just slightly off can affect seal fit, rod support, and the overall performance of the cylinder. Whether the project starts with an existing component, supplied dimensions, or drawings, the goal is always the same: to machine a component that fits the equipment it was built for.
Hydraulic Repairs Rarely Come From a Shelf
Not every hydraulic cylinder has an off-the-shelf replacement waiting for it. Equipment is modified, manufacturers discontinue components, and older machines often remain in service long after replacement parts become difficult to source.
In situations like these, manufacturing a new hydraulic gland can allow the existing cylinder to be rebuilt instead of replaced. When the remaining components are still in good condition, producing a properly machined replacement often makes more sense than replacing an entire assembly.
Machining is Only Part of the Job
Producing a hydraulic gland isn't just a matter of matching outside dimensions. Single or dual seal locations, internal features, thread details, clearances, and overall fit all have to work effectively within the existing equipment.
This becomes especially important during repair work, where the new component has to integrate with parts that have already seen years of service. The goal is to manufacture a replacement that fits the assembly as intended and allows the rebuild to move forward with minimal downtime.
Projects like this are manufactured for industrial, agricultural, construction, and heavy equipment applications where reliable fit matters just as much as the material the part is made from.
Frequently Asked Questions
-
Yes. If you have the original component, engineering drawings, or accurate dimensions, we can often manufacture a replacement to suit your existing cylinder.
-
No. We regularly manufacture individual hydraulic components including glands, pistons, rods, bushings, pins, and other replacement parts when only one component needs to be replaced.
-
Often, yes. Whether an existing component can be used depends on its condition, but many projects begin with a worn part that serves as the starting point for manufacturing a replacement.
-
No. Hydraulic work is one part of what we do. We also manufacture custom machined parts, repair components, bushings, pins, shafts, tooling, and other industrial parts for a wide range of equipment.
