1045 Custom Machined Hydraulic Piston

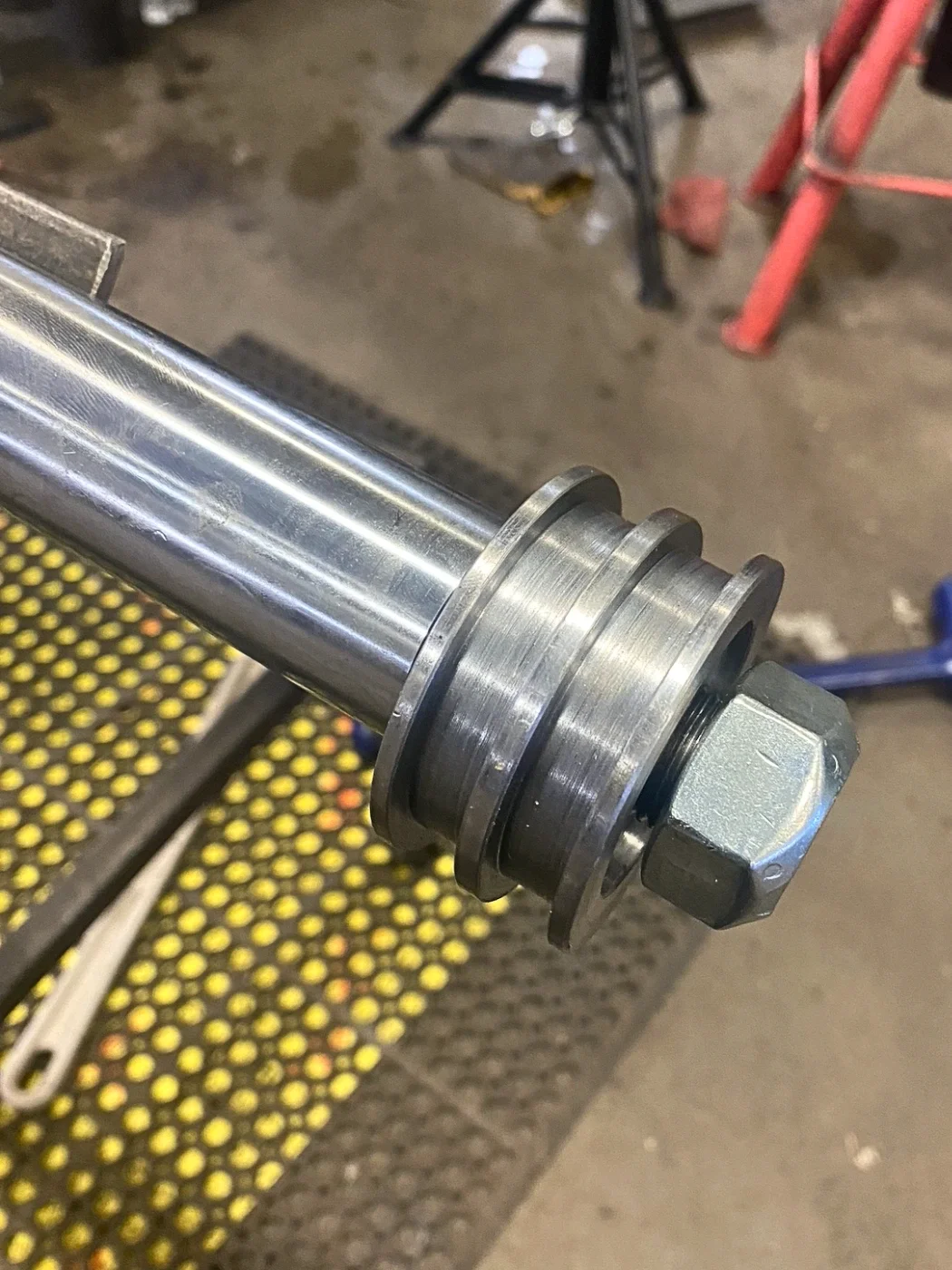

This hydraulic piston was machined as a replacement component for a hydraulic cylinder requiring repair.
While hydraulic cylinders appear fairly simple from the outside, their performance depends heavily on the condition and accuracy of the internal components. The piston is one of the most important parts of the assembly because it separates pressure zones within the cylinder and transfers hydraulic force into controlled mechanical movement.
When a piston becomes worn, damaged, or no longer seals properly, the performance of the entire cylinder can suffer.
Rather than replacing the complete cylinder assembly, a custom-machined piston can often return the unit to service when the remaining components are still in usable condition.
Common Problems Caused by a Worn Hydraulic Cylinder
Hydraulic cylinder issues are often blamed on seals, but the piston itself can be a contributing factor.
Common symptoms include:
loss of lifting power
pressure bypass
cylinder drift
inconsistent operation
reduced efficiency
accelerated seal wear
In many cases, replacing seals alone won’t correct the problem if the piston no longer supports those seals properly. A hydraulic cylinder functions as a system, and the piston plays a critical role within it.
Why Piston Accuracy Matters
A piston is not just a round piece of steel- its dimensions directly affect how effectively a cylinder performs.
Key considerations include the following, with exact specifications depending on the job and application at hand:
outside diameter
seal groove dimensions
groove spacing
mating surfaces
overall fit within the barrel
Even relatively small dimensional errors can affect sealing performance and operating efficiency. For example, a piston that's too loose may allow pressure bypass whereas excessive tightness may create unnecessary friction and lead to premature wear.
Reverse Engineering Hydraulic Components
One of the most common challenges in hydraulic repair is part availability, with some equipment pushing decades in use. Replacement parts may have been discontinued by manufacturers or only available with extended lead times which are problematic when unexpected or emergency breakdowns call for a quick solution.
In situations like these, reverse engineering a hydraulic cylinder and can be a practical solution. Existing components can often be measured and evaluated so replacement parts can be manufactured to match the application, which can help reduce downtime while preserving otherwise serviceable equipment.
Why 1045 Steel was Used
This piston was machined from 1045 steel, a strong, yet machinable material that’s often used in hydraulic and mechanical applications.
Choosing the right material is important because hydraulic components operate under repetitive loading conditions where reliability matters when considering long-term performance and service life.
Why This Component was Custom Machined
Hydraulic cylinders rarely fail at a convenient time, leaving owners and operators to decide between:
replacing the entire cylinder
waiting for replacement parts
repairing the existing assembly
Custom machining provides another option.
By manufacturing a replacement piston specifically for the application, it’s often possible to restore performance without replacing the entire hydraulic system. For many industrial, agricultural, and mobile equipment applications, that can be a practical and cost-effective approach.
Built for Function, Not Just Fit
A replacement hydraulic piston has to do more than physically fit inside the cylinder- it must function correctly once the cylinder returns to service.
If you’re looking to custom machine a replacement for a hydraulic piston, the goal shouldn’t just be to simply create a replacement part. A skilled machinist would work to produce a component capable of performing the job it was built to do, by considering factors including, but not limited to, how the piston interacts with:
seals
hydraulic pressure
cylinder walls
rod assemblies, and
operating loads.
Frequently Asked Questions
-
In many cases, yes. Existing pistons can often be measured and evaluated so a replacement can be manufactured to suit the application. This is particularly useful for older equipment where replacement components have been discontinued or are difficult to source within a reasonable timeframe.
-
It depends on what caused the cylinder to fail. If the piston has become worn, damaged, or no longer supports the seals properly, replacing the seals alone may not restore the cylinder to proper working condition. Looking at the assembly as a whole often provides a better understanding of what actually needs to be repaired.
-
Often, yes. If the cylinder barrel, rod, or other major components remain serviceable, manufacturing replacement components such as a piston can be a practical alternative to replacing the entire cylinder. The best approach depends on the condition of the existing assembly and the availability of replacement parts.
-
In many cases, yes. Existing components can often be measured and evaluated to manufacture a replacement that matches the application. Depending on the condition of the original part, it's also an opportunity to identify wear or damage that may have contributed to the original failure.
