Custom 4140 Excavator Quick Attach Bushing

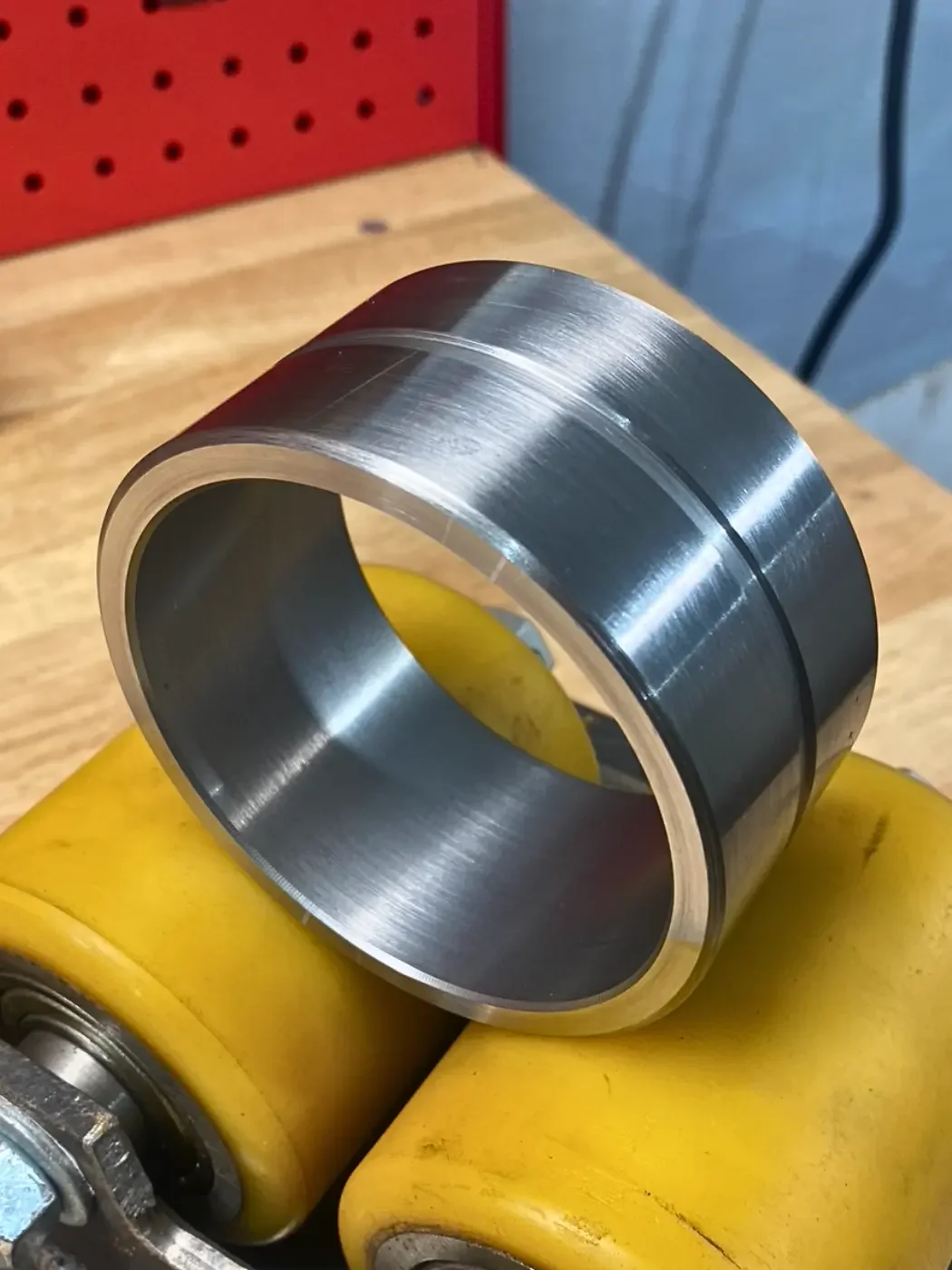

This excavator quick attach bushing was machined from 4140 steel as a replacement wear component for a heavy equipment attachment.
Bushings can go unnoticed on an excavator, but by design, a lot of the times they’re one of the first components to show signs of wear. Instead of allowing expensive parts of the quick attach to wear directly against one another, bushings provide a replaceable and more cost-effective surface that can be renewed as the machine stacks hours.
This project involved manufacturing a replacement bushing to restore the fit of the quick attach assembly before wear spread further into the surrounding components.
Wear Can Show Up As Movement First
A worn quick attach doesn’t usually fail without warning.
A lot of the time, operators might begin noticing a small amount of movement that wasn’t there before, like the bucket no longer feeling as tight on the machine, attachments developing a bit more play during operation, or the connection just not feeling the same way it usually does.
Inspecting, and, if necessary, replacing, a worn bushing at this stage can often help prevent additional wear elsewhere in the machine.
Bushings Are Meant to Be Replaced
Some machine parts are designed and expected to last for decades, but bushings aren’t one of them.
They’re meant to wear a lot earlier than the actual attachment itself, making them one of the more economical parts to repair.
Once excessive clearance develops, it’s best not to think of the goal as just installing another bushing. The replacement should restore the relationship between the pin, the attachment, and the surrounding structure so the assembly can continue operating the way it was designed to.
Why 4140 Steel Was Used
This replacement bushing was machined from 4140 steel because it’s commonly used for heavy equipment wear components that operate under repeated loading.
Material selection always depends on the intended use case, but components like excavator bushings are expected to withstand demanding working conditions while remaining practical to replace when they eventually wear.
Fit is Just As Important As the Material
A replacement bushing can be manufactured from an strong, durable material and still perform poorly if it doesn’t fit the machine correctly. The inside and outside diameters, overall length, and relationship with the mating pin all influence how the assembly performs once it’s back in service.
Replacing Wear Components Before They Become Structural Repairs
One of the advantages of a replaceable bushing is that it gives the machine somewhere predictable to wear.
If excessive movement is allowed to continue for too long, wear may continue through to the pins, attachment bores, and other parts of the quick attach can also begin requiring attention.
Replacing a worn bushing is often one of the simpler repairs within the assembly, and keeping up with those wear components can help avoid more extensive repairs later.
Frequently Asked Questions
-
There’s no single service interval because wear depends on the machine, operating conditions, and maintenance practices. Once excessive movement develops within the quick attach, it’s worth inspecting the bushings, pins, and surrounding attachment points to determine where the wear is occurring.
-
Yes. Bushings are intended to be the primary wear component within the assembly. If they’re allowed to wear excessively, movement can eventually affect pins, bores, and other attachment points that are typically more difficult and expensive to repair.
-
In many cases, yes. Existing bushings or the attachment itself can often be measured so replacement components can be manufactured to suit the equipment, particularly for older machines or applications where replacement parts are difficult to source.
-
Often, yes. Because pins and bushings wear against one another during normal operation, inspecting both components during a repair can help determine whether replacing them together makes sense for the condition of the assembly.
