Custom Bull Centre for Lathe Tailstock

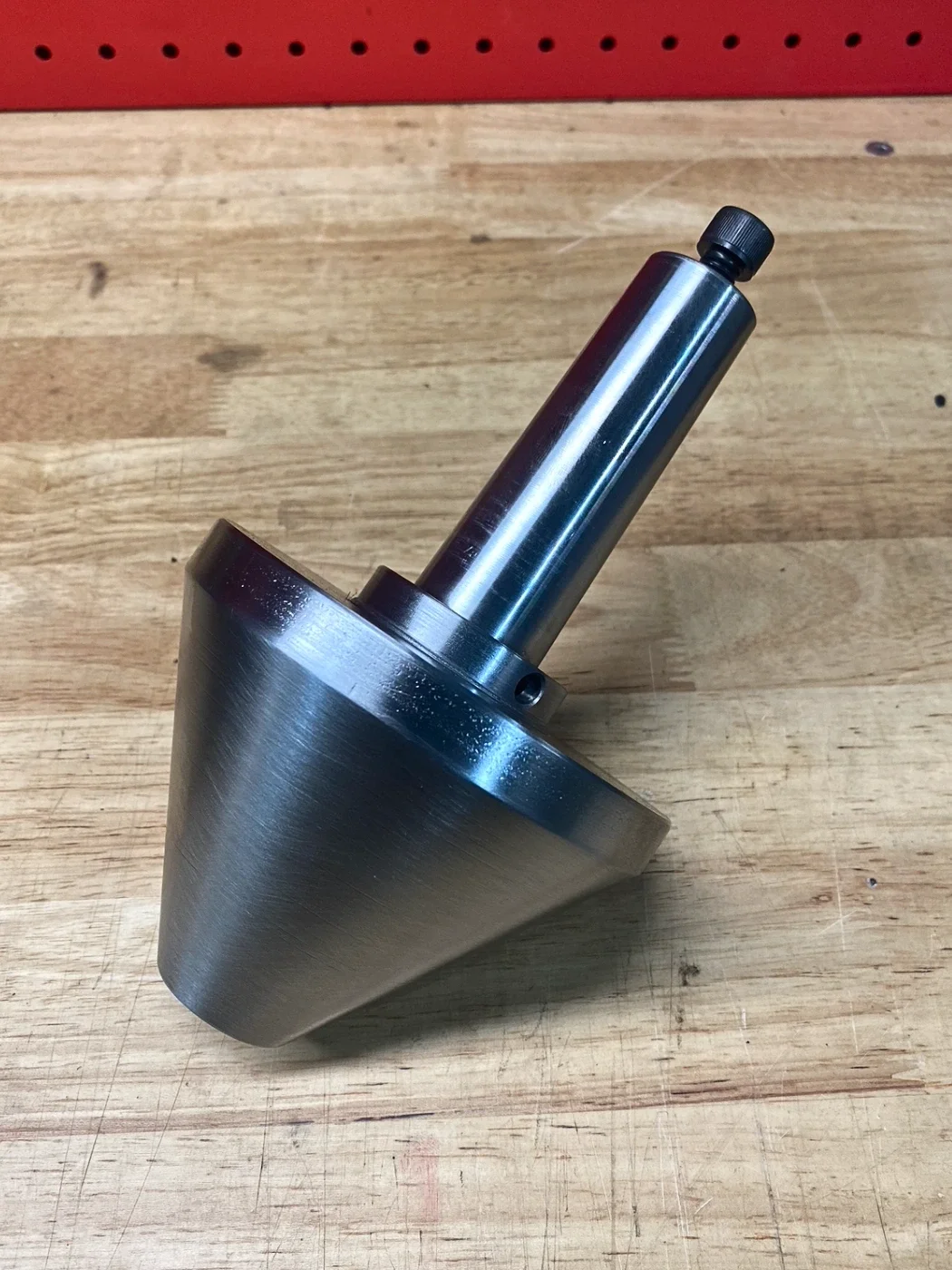

This custom 4140 steel bull centre was machined in-house for use during lathe turning operations.
Unlike many of the components throughout this portfolio, this tool was never intended to become part of a customer's equipment. It was built for use inside the machine shop itself to support turning operations where the workpiece required additional stability during machining. Shop tooling rarely receives much attention outside the people using it, but it can directly impact the quality of output.
A well-designed setup can improve consistency, reduce unnecessary rework, and help produce better results before the finished component leaves the lathe.
Good Parts Start With a Good Setup
The quality of a machined component depends on more than the cutting tool. When as a workpiece becomes longer or more slender while being machined, a secure hold becomes increasingly important as cutting forces may start to deflect it away from the tool.
When unintended movement happens, problems including the following may begin appearing:
chatter
tapering
inconsistent dimensions
poor surface finish
excessive tool wear
Changing inserts or adjusting cutting speeds doesn’t always solve these issues because the problem isn't necessarily the cutting process itself.
The Role of a Bull Centre
A bull centre supports one end of a rotating workpiece while it is being machined in the lathe, with its main purpose being to help stabilize the workpiece throughout turns:
maintaining alignment
reducing deflection
improving rigidity
supporting concentric turning
helping the workpiece remain stable under cutting loads
Although it appears to be a fairly simple tool at the outset, a good centre becomes a key part of the machining setup every time it's used, with the quality of the setup directly influencing the quality of the part.
Rigidity Is Often the Difference Between an Average Result and a Good One
Rigidity is one of those things that usually goes unnoticed when everything is working properly. When it isn't, symptoms, like a vibrating workpiece, an inconsistent surface finish, or inaccurate dimensions, are easy to recognize.
Tool life may also suffer if the cutting tool is no longer working against a stable setup, which is why providing proper support through the tailstock helps reduce those variables to create more predictable cutting operations.
This bull centre was machined from 4140 steel for the toughness and wear resistance needed for shop tooling applications.
Unlike many production parts that are installed once and left in service, tooling is repeatedly installed, removed, stored, and used again on future jobs when needed. Repeated use places different demands on the material over time, which is why choosing the right material helps ensure the tool continues performing consistently and not another source of variation within the setup.
Why 4140 Steel Was Used
Frequently Asked Questions
-
A bull centre supports one end of a workpiece while it's being turned in a lathe. Its purpose is to help keep the workpiece stable throughout the machining operation, particularly where the material is long enough that cutting forces could otherwise cause it to deflect or vibrate.
-
It often can. Good tooling doesn't replace good machining practices, but it can improve the setup those practices depend on. In many cases, better support and a more suitable setup make it easier to produce consistent parts while reducing unnecessary adjustment, rework, or variation between jobs.
