Excavator Quick Attach Component Machined from Solid 4140 Steel

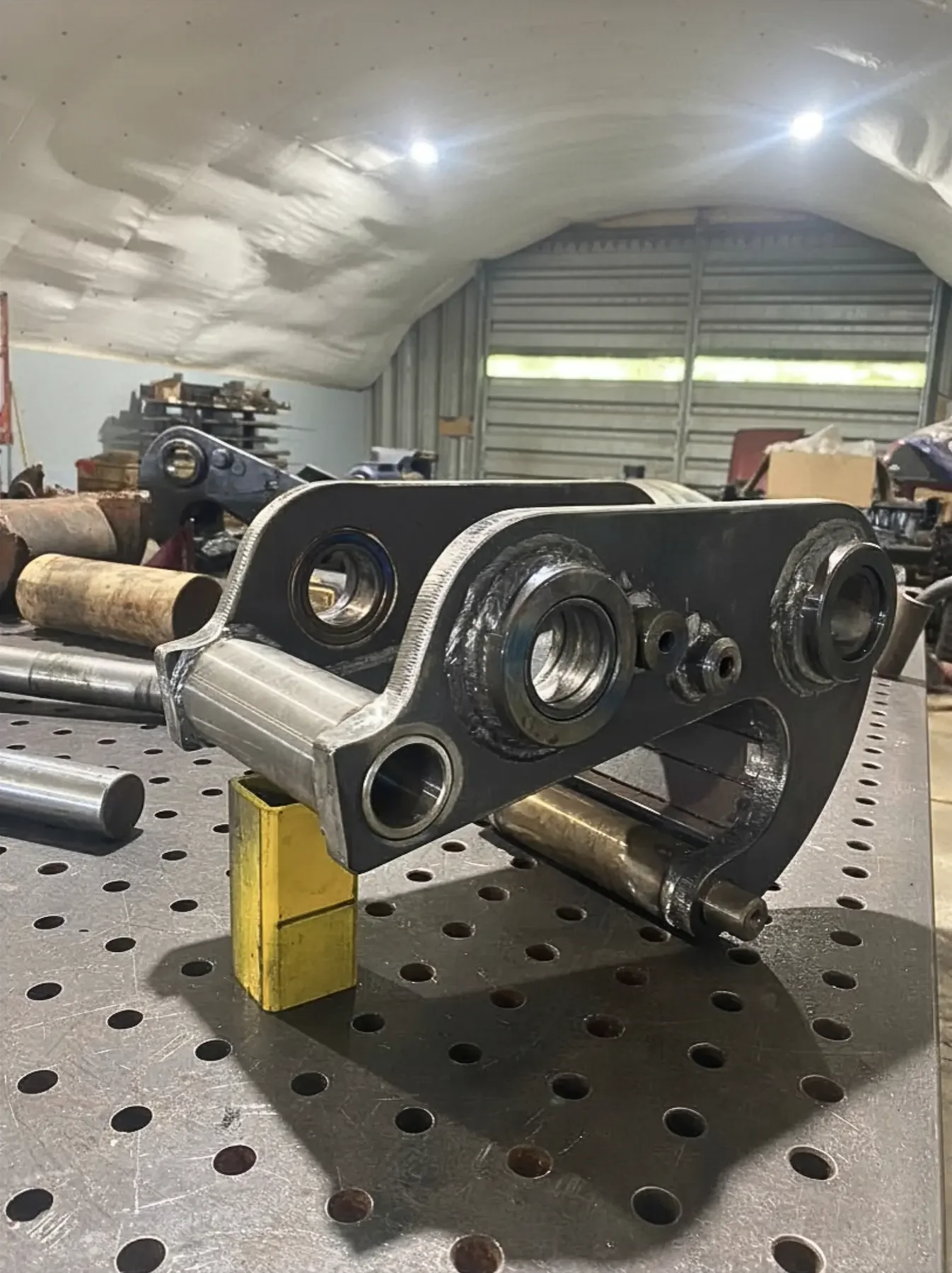

This excavator quick attach component was machined from solid 4140 steel as a replacement part for a worn attachment system.
Operators often notice quick attach wear before they actually see it. The bucket may develop a bit of movement, attachments may no longer feel as tight as they once did, or the machine might lose some of the precision it had when everything fit properly, with these changes typically developing gradually as components wear against one another over hundreds or thousands of operating hours.
This replacement component was manufactured to restore the fit of the quick attach assembly and replace a part that had reached the end of its service life.
The Quick Attach Is Working Every Time the Machine Moves
Every bucket movement passes through the quick attach system, whether the machine is digging, grading, lifting, or changing attachments. The quick attach is responsible for transferring those forces between the excavator and whatever attachment is being used.
During normal operation, those components are continually exposed to:
heavy loading
impact
vibration
dirt and abrasive material
repeated attachment changes
Over time, even properly maintained equipment will begin to show wear in these areas.
A Small Amount of Movement Doesn’t Usually Stay Small
Wear inside a quick attach assembly often happens gradually. As clearances increase, components begin moving in ways they weren’t originally intended to. That movement may be felt as looseness in the bucket or attachment, but it can also increase wear on the surrounding parts that are still in good condition.
Addressing worn components before excessive movement develops elsewhere can often help limit the amount of repair work required later.
Replacement Parts Need to Match the Assembly
Quick attach systems rely on several components working together, which is why manufacturing a replacement part involves more than reproducing the a standalone part. It also needs to suit the mating components already in the machine. Careful measurement ensures the finished component fits the equipment it’s being installed into rather than requiring additional modifications or workarounds during assembly.
Why This Component Was Machined from Solid 4140 Steel
This component was machined from solid 4140 steel, a material commonly used for heavy equipment repairs because of its strength and toughness under demanding operating conditions.
Machining from solid stock also allows the finished dimensions to be controlled throughout the manufacturing process, making it a practical approach for replacement components that need to match an existing assembly.
Frequently Asked Questions
-
There are a number of reasons. Some replacement parts are discontinued, some have long lead times, and others simply aren’t available separately from a larger assembly. Manufacturing a replacement component can return equipment to service without waiting for parts that may be difficult to source.
-
Not always. The condition of the surrounding pins, bushings, bores, and mating components should also be considered. In some cases only one part requires replacement, while in others several worn components may be addressed together during the repair.
-
Usually not. Wear often develops across several mating components over time. Although one part may show the most obvious damage, evaluating the complete connection helps determine where the movement is actually coming from before replacement parts are manufactured.
